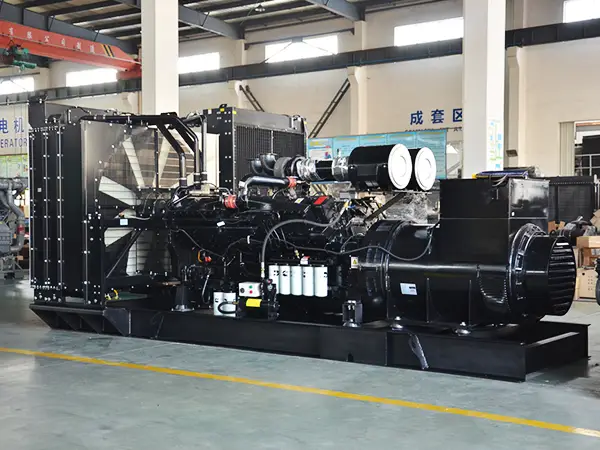

275-1875kVA Diesel Generator Sets Powered by CCEC Cummins Engine

These generator sets are powered by CCEC Cummins engines, engineered with advanced design and manufacturing expertise to meet China National III emission standards. Built for high-output performance, they are tailored for heavy-duty operations that demand sustained power under continuous load. With a broad capacity range from 275 to 1875 kVA, they are well-suited for applications such as large cranes, marine vessels, mining trucks, and other heavy industrial equipment. Their design ensures efficient operation, stable performance, and the durability needed for challenging environments.

Frequency 50Hz 60Hz
Prime Power 250-1600kVA (200-1280kW) 275-1760kVA (220-1408kW)
Standby Power 313-1563kVA (250-1250kW) 275-1875kVA (220-1500kW)
Request a Quote
Specifications
Technical Specifications
Genset ModelCDC275-IV
Engine ModelNT855-GA
Prime Power250 kVA/200 kW
Standby Power275 kVA/220 kW
Frequency50 Hz
Genset ModelCDC275-1
Engine ModelNT855-GA
Prime PowerN/A
Standby Power275 kVA/220 kW
Frequency60 Hz
Genset ModelCDC275-V
Engine ModelMTA11-G2
Prime Power250 kVA/200 kW
Standby Power275 kVA/220 kW
Frequency50 Hz
Genset ModelCDC350
Engine ModelQSM11-G1
Prime Power313 kVA/250 kW
Standby Power350 kVA/280 kW
Frequency60 Hz
Genset ModelCDC1650
Engine ModelKTA50-G8
Prime Power1375 kVA/1100 kW
Standby Power1650 kVA/1320 kW
Frequency50 Hz
Genset ModelCDC1475
Engine ModelKTA50-G12
Prime Power1412 kVA/1130 kW
Standby Power1475 kVA/1180 kW
Frequency60 Hz
Genset ModelCDC1650-1
Engine ModelKTA50-GS8
Prime Power1500 kVA/1200 kW
Standby Power1650 kVA/1320 kW
Frequency50 Hz
Genset ModelCDC1550
Engine ModelQSK38-G4
Prime Power1375 kVA/1100 kW
Standby Power1550 kVA/1240 kW
Frequency60 Hz
Genset ModelCDC1675
Engine ModelQSK38-G14
Prime Power1523 kVA/1218 kW
Standby Power1675 kVA/1340 kW
Frequency50 Hz
Genset ModelCDC1563
Engine ModelKTA50-G3
Prime Power1375 kVA/1100 kW
Standby Power1563 kVA/1250 kW
Frequency60 Hz
Genset ModelCDC1760
Engine ModelQSK38-G15
Prime Power1600 kVA/1280 kW
Standby Power1760 kVA/1408 kW
Frequency50 Hz
Genset ModelCDC1875
Engine ModelKTA50-G9
Prime Power1563 kVA/1250 kW
Standby Power1875 kVA/1500 kW
Frequency60 Hz
Specifications
Standard configurations

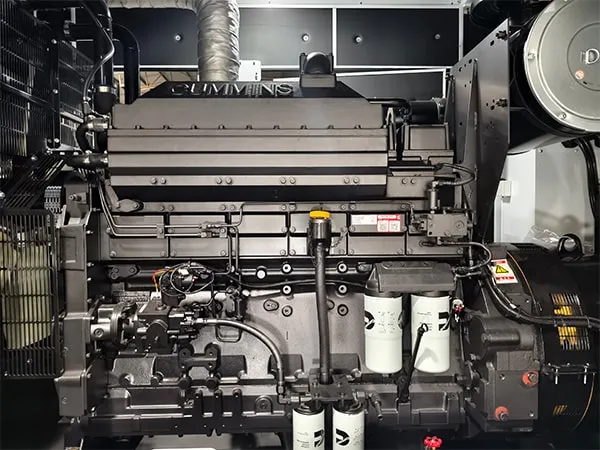

High‑horsepower diesel engine
High‑horsepower diesel engine
Provider:
CCEC (NT855/KTA series with Cummins PT fuel system, QSK series with electronically controlled high‑pressure common‑rail fuel system; specific configurations vary by model)
Speed:
1500rpm / 1800rpm

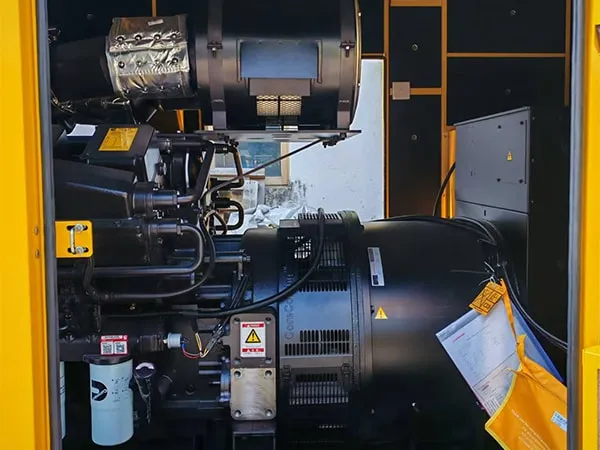

Alternator
Alternator
Providers:
Stamford, Leroy‑Somer
Type:
brushless synchronous alternator
Features:
Class H Insulation; IP23 Protection

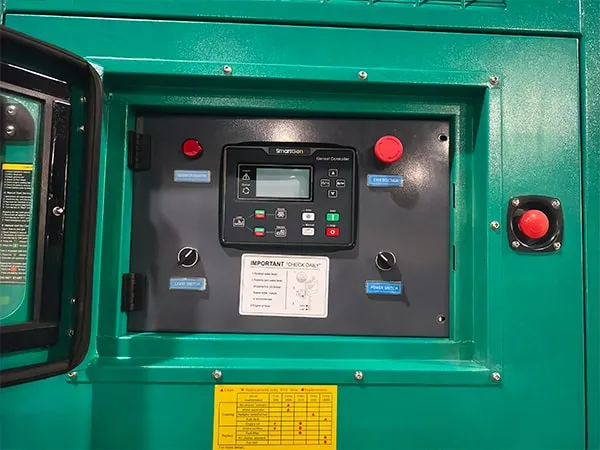

Control system
Control system
Smart control module:
Deep Sea, SmartGen
Features:
automatic start/stop; alarm & protection; remote monitoring (optional)
Automatic voltage regulator (AVR)
Steady‑state voltage regulation:
≤ ±1%
Cooling system
Components:
standard radiator or optional 45℃/50℃ high ambient radiator, fan and fan guard
Base frame & Tank
Base frame type:
heavy‑duty steel base frame
Optional features:
integrated tank (8h/24h operation capacity)
Noise reduction system
Method:
industrial silencer
Optional feature:
sound‑attenuated enclosure, including container‑type enclosure
Electrical protection system
Features:
air circuit breaker/circuit breaker; phase‑sequence relay; alarm/shutdown protection for overload, short circuit, low oil pressure, high coolant temperature, and overspeed
Starting system
Method:
24V electric start with maintenance‑free battery and float charger
Exhaust system
Components:
Environmentally friendly options: low-noise enclosure, DOC/DOC+DPF/SCR aftertreatment systems
Optional configurations
  • Paralleling system (for parallel connection of multiple generators, with synchronizer and load sharing module)
  • Automatic transfer switches (ATS)
  • Jacket water heater (for reliable starting under cold‑weather conditions)
  • Dual fuel line with day tank and remote control panel
  • Data monitoring system (RS485 / Modbus / Ethernet / cloud platform)
  • Environmentally friendly options: low‑noise enclosure and exhaust aftertreatment system
