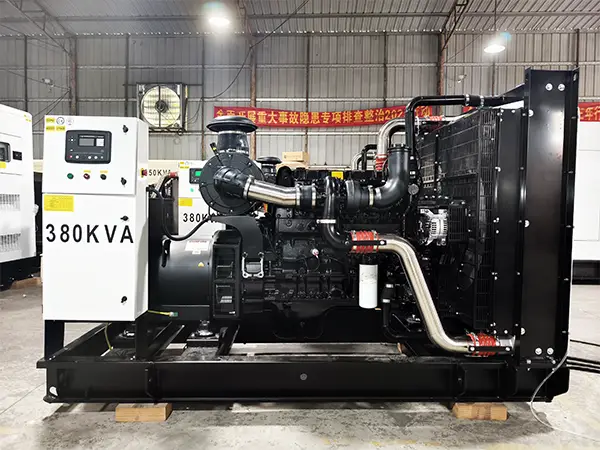

24-600kVA Diesel Generator Sets Powered by DCEC Cummins Engine

These generator sets feature DCEC Cummins engines built with Cummins’ advanced design and manufacturing expertise, meeting China National VI emission standards. Covering light-, medium-, and heavy-duty engine ranges, they are designed for mid- to small-capacity power needs. Their reliable performance and adaptability make them an excellent fit for trucking, construction machinery, and other industries that require steady, efficient power in demanding conditions.

Frequency 50Hz 60Hz
Prime Power 20-500kVA (17-400kW) 25-550kVA (20-440kW)
Standby Power 24-550kVA (19-440kW) 28-600kVA (22-480kW)
Request a Quote
Specifications
Technical Specifications
Genset ModelCDC24
Engine Model4B3.9-G11
Prime Power20 kVA/17 kW
Standby Power24 kVA/19 kW
Frequency50 Hz
Genset ModelCDC28
Engine Model4B3.9-G11
Prime Power25 kVA/20 kW
Standby Power28 kVA/22 kW
Frequency60 Hz
Genset ModelCDC28
Engine ModelQSB3.9-G31
Prime Power25 kVA/20 kW
Standby Power28 kVA/22 kW
Frequency50 Hz
Genset ModelCDC33
Engine Model4B3.9-G2
Prime Power30 kVA/24 kW
Standby Power33 kVA/26 kW
Frequency60 Hz
Genset ModelCDC475-1
Engine Model6ZTAA13-G4
Prime Power438 kVA/350 kW
Standby Power475 kVA/380 kW
Frequency50 Hz
Genset ModelCDC475
Engine Model6ZTAA13-G2
Prime Power438 kVA/350 kW
Standby Power475 kVA/380 kW
Frequency60 Hz
Genset ModelCDC500
Engine ModelQSZ13-G5
Prime Power450 kVA/360 kW
Standby Power500 kVA/400 kW
Frequency50 Hz
Genset ModelCDC488
Engine ModelQSZ13-G7
Prime Power450 kVA/360 kW
Standby Power488 kVA/390 kW
Frequency60 Hz
Genset ModelCDC525
Engine ModelQSZ13-G3
Prime Power500 kVA/400 kW
Standby Power525 kVA/420 kW
Frequency50 Hz
Genset ModelCDC525
Engine ModelQSZ13-G5
Prime Power475 kVA/380 kW
Standby Power525 kVA/420 kW
Frequency60 Hz
Genset ModelCDC550
Engine ModelQSZ13-G10
Prime Power500 kVA/400 kW
Standby Power550 kVA/440 kW
Frequency50 Hz
Genset ModelCDC475-1
Engine Model6ZTAA13-G4
Prime Power438 kVA/350 kW
Standby Power475 kVA/380 kW
Frequency60 Hz
Specifications
Standard configurations

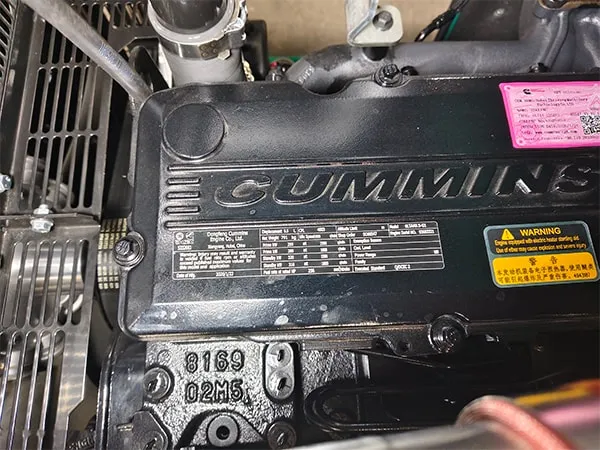

Diesel engine
Diesel engine
Provider:
DCEC (B/C/L/Z series)
Features:
electronic or mechanical speed governing; high‑pressure common‑rail system (optional)
Speed:
1500rpm / 1800rpm

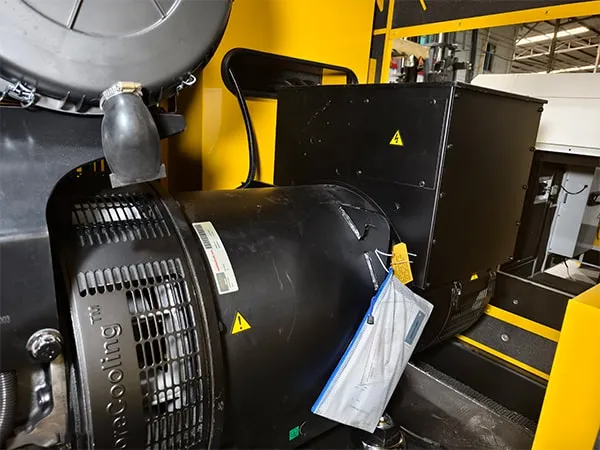

Alternator
Alternator
Providers:
Stamford, Leroy‑Somer
Type:
brushless synchronous alternator
Features:
Class H Insulation; IP23 Protection

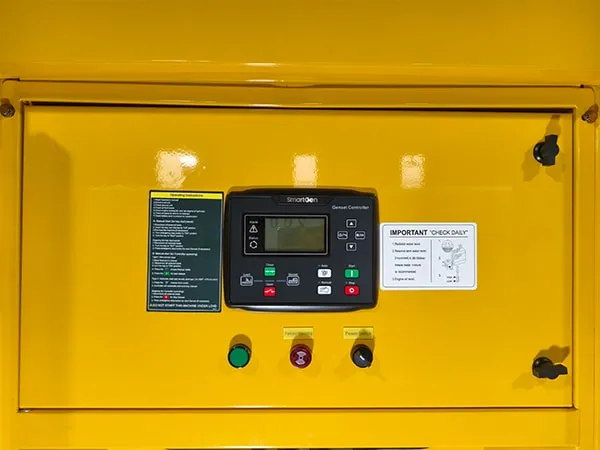

Control system
Control system
Smart control module:
Deep Sea, SmartGen
Features:
automatic start/stop; alarm & protection; remote monitoring (optional)
Automatic voltage regulator (AVR)
Steady‑state voltage regulation:
≤ ±1%
Cooling system
Components:
standard radiator or optional 45℃/50℃ high ambient radiator, fan and fan guard
Base frame & Tank
Base frame type:
heavy‑duty steel base frame
Optional features:
integrated tank (8h/24h operation capacity)
Noise reduction system
Method:
industrial silencer
Optional feature:
sound‑attenuated enclosure, including container‑type enclosure
Electrical protection system
Features:
air circuit breaker/circuit breaker; phase‑sequence relay; alarm/shutdown protection for overload, short circuit, low oil pressure, high coolant temperature, and overspeed
Starting system
Method:
24V electric start with maintenance‑free battery and float charger
Exhaust system
Components:
Environmentally friendly options: low-noise enclosure, DOC/DOC+DPF/SCR aftertreatment systems
Optional configurations
  • Paralleling system (for parallel connection of multiple generators, with synchronizer and load sharing module)
  • Automatic transfer switches (ATS)
  • Jacket water heater (for reliable starting under cold‑weather conditions)
  • Dual fuel line / day tank , remote control panel
  • Data monitoring system (RS485 / Modbus / Ethernet / cloud platform)
  • Environmentally friendly options: low‑noise enclosure and exhaust aftertreatment system
